Common Troubleshooting Tips for the Texas Hunter 450lb Tripod Feeder

When you invest in a Texas Hunter 450lb tripod feeder, you expect reliable performance season after season. Even the most robust equipment can encounter issues—from a motor that won’t spin to a timer that resets after a storm. This guide covers the most frequent problems owners face, with practical, step-by-step fixes you can apply without a service call.

Whether you’re dealing with a stuck sling plate, a dead battery after a cold snap, or a feeder that seems to drop corn at the wrong time, these troubleshooting tips draw from real-world experience with the 450lb model. We focus on the tripod’s specific mechanics—the spin-cast mechanism, larger feed funnel, and elevated platform—so you can get back to filling your hunting property efficiently.

Why Does My Texas Hunter 450lb Feeder Motor Run but No Corn Dispenses?

This is one of the most common complaints, especially after a period of high humidity or rain. The motor shaft spins, but the sling plate doesn’t throw corn. The culprit is almost always a loose or slipped set screw inside the motor hub.

Step-by-step fix:

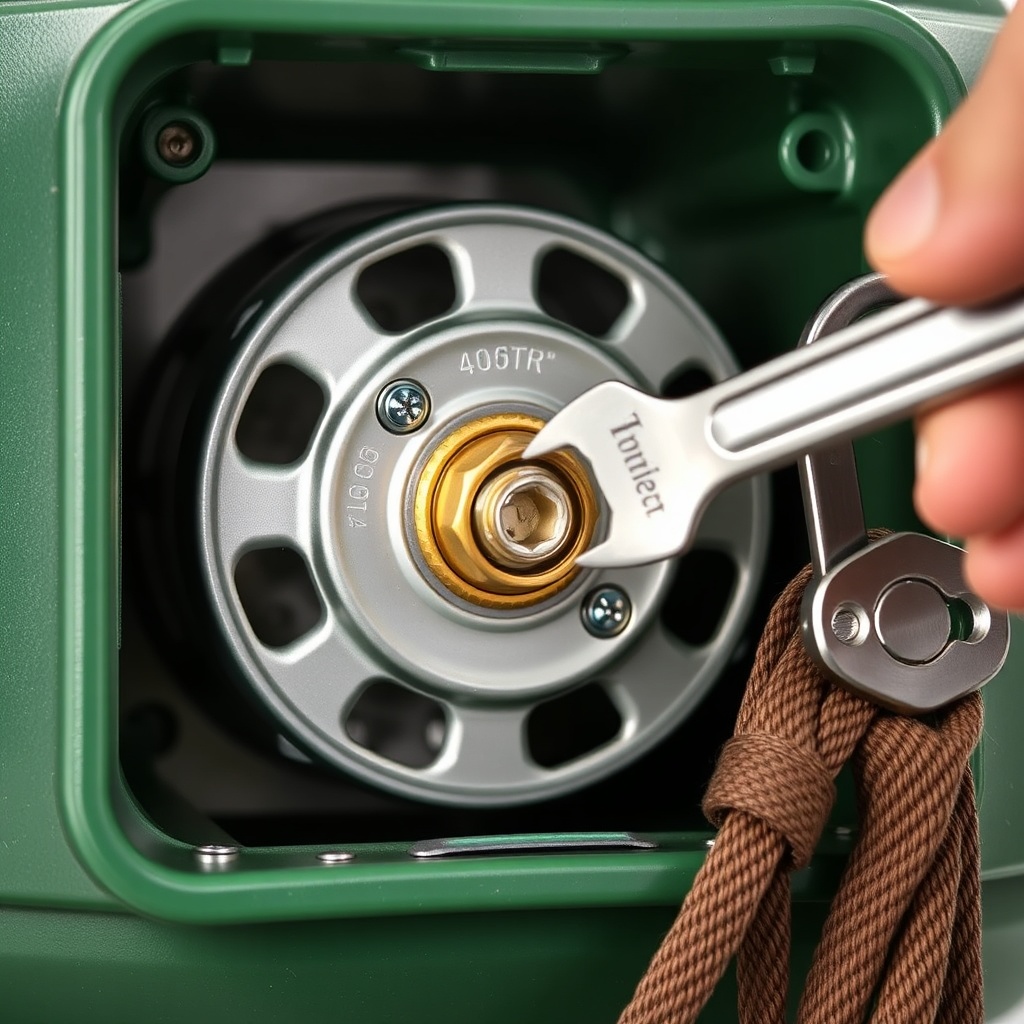

• Disconnect the battery and remove the motor housing cover (4 Phillips screws).
• Inspect the brass or steel set screw that secures the sling plate to the motor shaft. On the Texas Hunter 450lb unit, this screw is often a 3/32” hex key.
• If the screw is loose, tighten it firmly—but don’t over-torque and strip the threads. Apply a drop of blue Loctite (medium strength) to prevent future loosening.
• Reassemble and test with a handful of corn. If the plate still slips, the motor shaft may be worn. In that case, replace the entire motor assembly (about $45–$55 for the OEM part).

Another possibility: the feed funnel throat is blocked by a debris wad or a clump of moist corn. On the 450lb model, the funnel opening is 2.5 inches wide, but a single damp kernel can bridge across if the corn has been in storage too long. Pour out the remaining corn and wipe the funnel dry with a cloth.

Prevention: Use only dry, whole-kernel corn. Add a desiccant packet (like silica gel) inside the hopper during humid months. Check the set screw every other fill-up.

Why Does My Texas Hunter 450lb Tripod Feeder Timer Keep Resetting or Losing Programming?

A timer that forgets its feed times is usually a power issue—either an intermittent battery connection or a low-voltage condition that resets the microcontroller. The Texas Hunter 450lb uses a 6V or 12V timer (check your model).

Diagnostic steps:

• Measure battery voltage at the timer terminals with a multimeter. A fully charged 12V lead-acid battery should read 12.6V–12.8V. If it’s below 12.0V, the timer may reset when the motor draws current.
• Inspect the battery cable connectors for corrosion. Green or white crust on the spade terminals interrupts power. Clean with a wire brush and apply dielectric grease.
• Check the fuse holder (if present). A blown fuse with high resistance can cause voltage drop. Replace with a 3A or 5A fuse (check your manual).
• On some units, a loose JST or molex connector between the solar panel and timer causes the timer to lose time when the sun goes down. Ensure the connector clicks fully into place.

Pro tip: If you live in a cold climate, weak batteries are the leading cause of timer resets. Replace your battery every two years. For the 450lb tripod, a 12V 7Ah rechargeable SLA battery works well and costs around $22–$28.

How Do I Fix a Texas Hunter 450lb Feeder That Throws Corn Too Far or Not Far Enough?

The spin-cast system on the 450lb model is adjustable for throw distance—but it’s not intuitive. The sling plate has three settings: low, medium, and high scatter. If corn is landing 10 feet away instead of the desired 25 feet, you likely have the plate set to the wrong position.

Adjustment procedure:

• Remove the spinner plate by loosening the center set screw (same as above).
• Identify the three notches on the plate. On the Texas Hunter OEM plate, position #1 is closest to the hub for wide scatter; position #3 is farthest for a concentrated drop.
• Rotate the plate to align with the desired notch and tighten the set screw.
• Test with a timed run of 5 seconds. A correct setting should throw corn in a 20- to 30-foot diameter for the 450lb model.

Common mistake: If you hear the motor spinning fast but corn dribbles straight down, the set screw is too loose. If corn flies 40 feet, the plate is set to the wrong notch or the motor speed is too high (some timers have speed control—reduce it if possible).

Also check the funnel throat for wear. Over time, the plastic funnel can crack at the mounting tabs, causing misalignment. Replacement funnels cost about $12 and are a quick fix.

Why Is My Texas Hunter 450lb Tripod Feeder Leaking Corn When It’s Not Scheduled to Feed?

A constant dribble of corn ruins the feeding pattern and attracts pests. This problem often points to a faulty spin-cast gate or a warped feed funnel.

Inspection checklist:

• The spin-cast gate is a small plastic or rubber flap inside the funnel throat. Over time, it can crack or get stuck open by a kernel. Open the hopper lid and shine a light into the funnel. If you see daylight through the gate, it’s not sealing.
• Replace the gate assembly (about $8–$10). It’s held by two screws and takes 5 minutes.
• Check the funnel itself. The Texas Hunter 450lb uses a heavy-duty plastic funnel, but extreme heat or cold can cause warping. If the funnel is bowed, the gate won’t seat properly. Replace the entire funnel ($12–$15).
• If the hopper has a large dent (from a falling tree or deer impact), it can create a gap at the funnel seal. Straighten the dent with a rubber mallet or replace the hopper.

Quick test: Fill the hopper with 50 pounds of corn and watch the funnel area for 10 minutes. Any leakage means a seal issue. Fix it immediately—a leaking feeder empties corn fast and draws raccoons and hogs.

How Can I Diagnose a Solar Panel That’s Not Charging the Texas Hunter 450lb Battery?

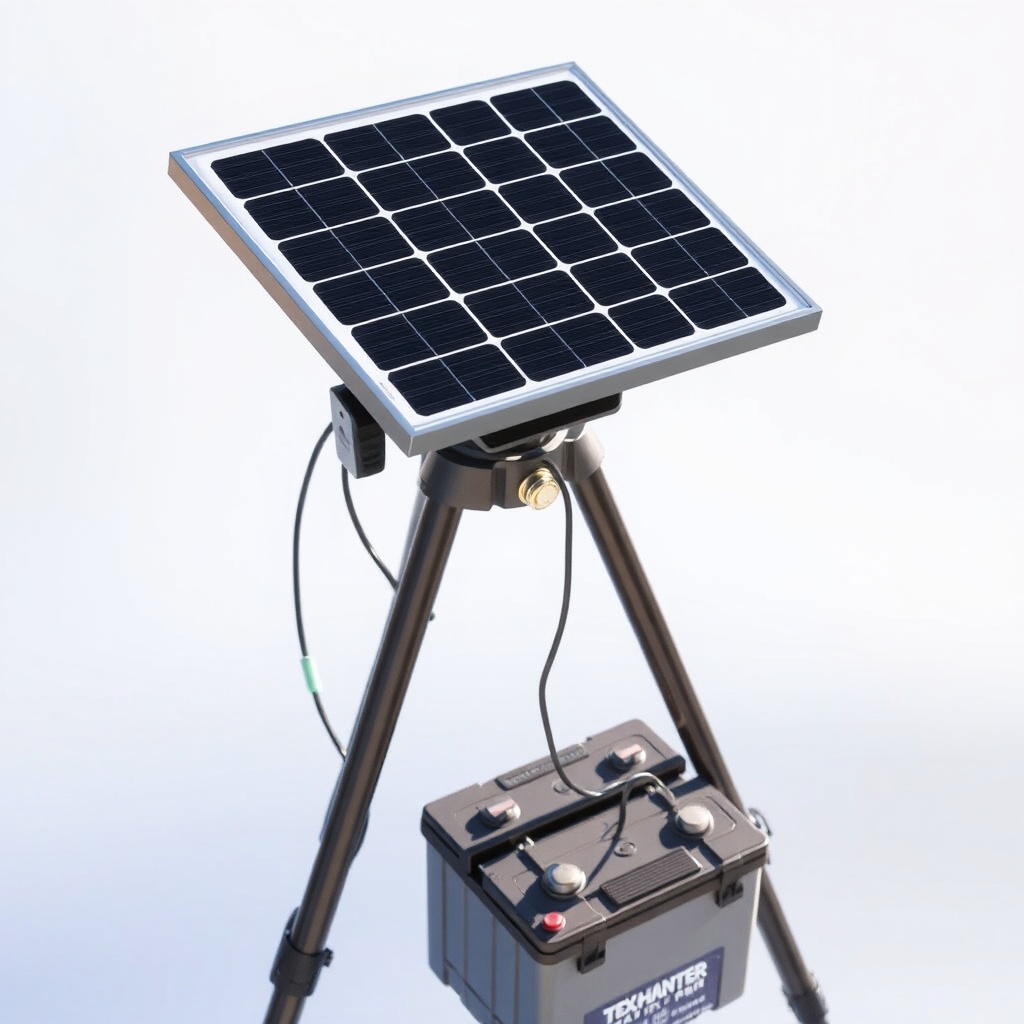

The Solar Panel Setup for Texas Hunter 450lb Feeder is a popular add-on, but it can fail to keep the battery topped up. If you notice the feeder losing power after two cloudy days, something’s wrong with the charging circuit.

Step-by-step diagnosis:

• Measure the solar panel’s open-circuit voltage in direct sunlight. A 10W panel should output 17V–21V. If you get 0V, the panel is dead or the cable is broken.
• Check the charging controller (if separate). On some Texas Hunter models, the controller is built into the timer. Look for a blinking green LED—steady green means charging; red means fault.
• Inspect the cable connection between panel and battery. Corroded MC4 connectors are common. Disconnect, clean with a small brush, and apply dielectric grease.
• If the battery is deeply discharged (below 10.5V for a 12V system), the controller may not recognize it. Jump-start the battery with a standard battery charger for 10 minutes, then reconnect the solar panel.

Preventive care: Clean the solar panel glass monthly with a soft cloth and water. Bird droppings and dust can cut output by 50%. Also, ensure the panel is angled toward the south (in the Northern Hemisphere) and not shaded by tree branches.

What Should I Do If the Texas Hunter 450lb Tripod Legs Sink into Soft Ground?

The 450lb tripod is heavy—around 85 pounds empty, plus 450 pounds of corn—that’s over 530 pounds total. On muddy or sandy soil, the legs can sink unevenly, tipping the feeder. This is a safety and performance issue.

Solutions:

• Install leg base plates (available from Texas Hunter or aftermarket). These are steel squares that distribute weight. They cost about $30 per set of three.
• If you don’t have plates, place each leg on a concrete patio block (16”x16”x2”) or a treated lumber square. Secure the leg to the block with a U-bolt or heavy zip tie.
• Check leg stability every time you fill the hopper. If one leg has sunk 2 inches deeper, use a shovel to level the ground and reposition the leg.

For extremely soft ground: Consider moving the feeder to a spot with more compacted soil, or build a small gravel pad (3’x3’) under the tripod. The 450lb model can also be mounted on a wooden platform if you don’t need the tripod—see the Texas Hunter 450lb Tripod Spin-Cast Feeder Review for platform conversion ideas.

What Owners Say About Troubleshooting the Texas Hunter 450lb Tripod

We spoke with several owners who have used the 450lb feeder for two or more seasons. Their observations align with the common fixes above.

“I thought I had a dead motor—it hummed but nothing came out. Turned out the set screw had loosened after a month of rain. Tightened it with some Loctite and haven’t had an issue since. Now I check that screw every time I fill.” — Mark T., South Texas

“My timer reset after every cold spell. Battery was fine—12.5V—but the solar panel connector was loose. I pushed it until it clicked and wrapped it with electrical tape. No more resets.” — Dave L., Oklahoma

“The legs sank 6 inches after a week of rain. I cut some 12×12 pressure-treated squares, bolted the legs to them, and now it’s solid. The 450lb feeder is heavy, so don’t skip the base plates.” — Greg S., Mississippi

Frequently Asked Questions About Texas Hunter 450lb Troubleshooting
